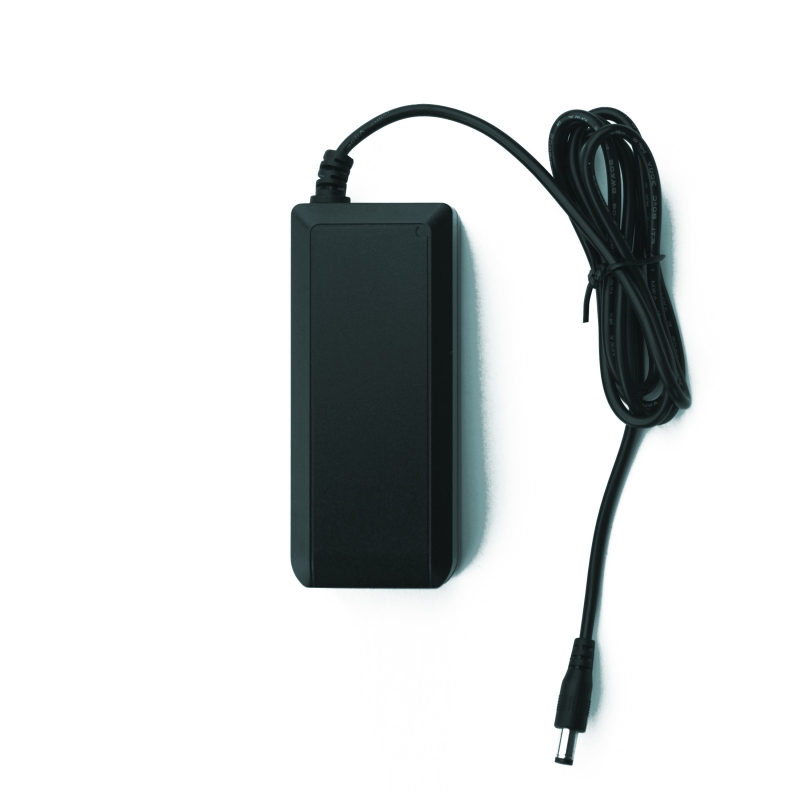

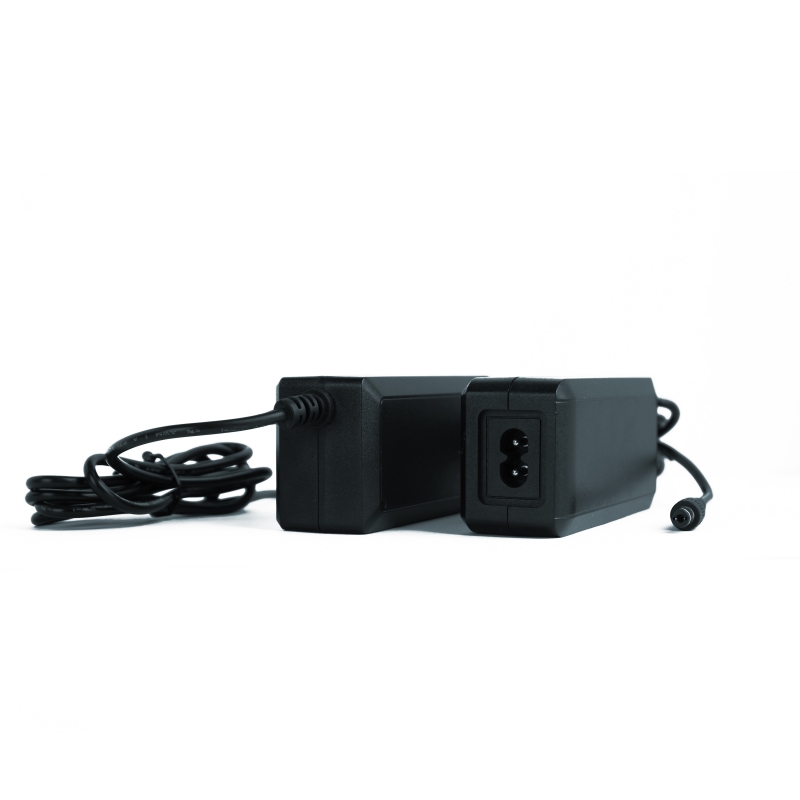

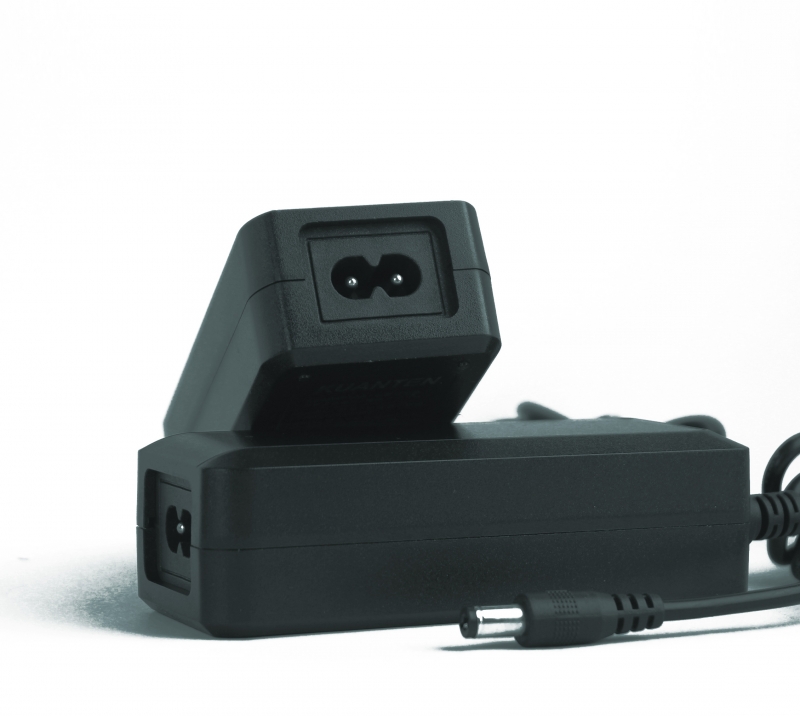

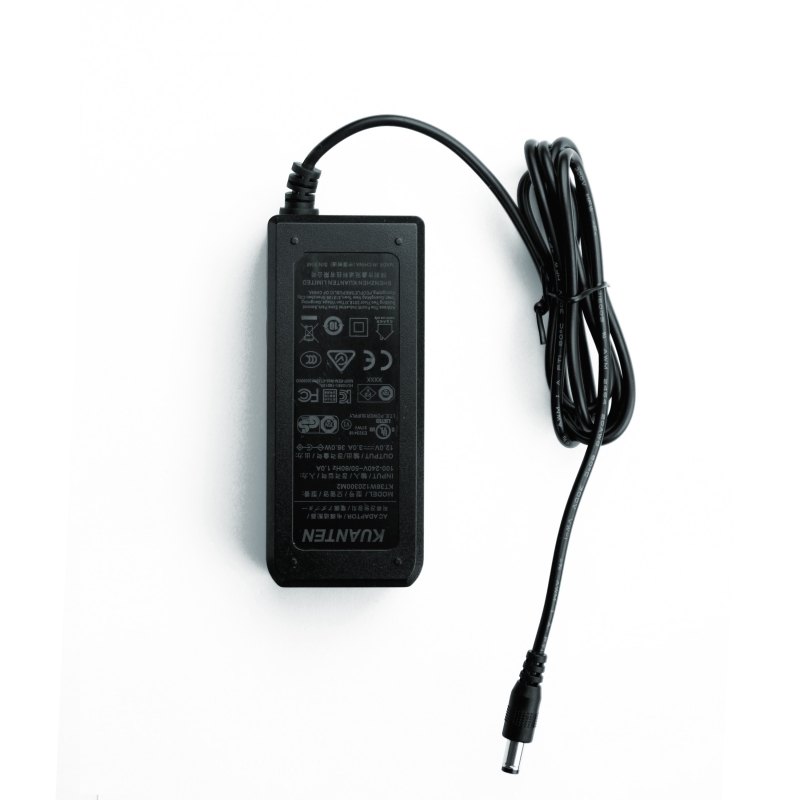

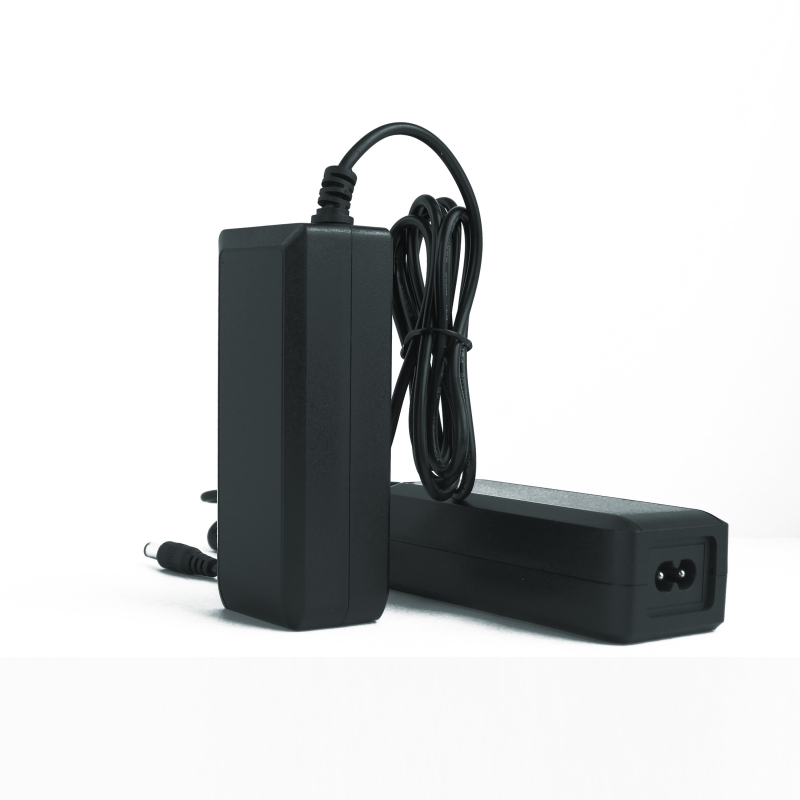

KT36W SWITCHING AC-DC ADAPTER

Features

Universal AC input/Full range

Ac inlet:C14/C6/C8

Built-in Active PFC Function

No load power consumption<0.075W

Energy efficiency Level VI

Comply with EISA 2007/DOE,NRC,AU GEMS, EU ERP and COC version 5

Class or Class power

Protections:short circuit /Overload/Over Voltage/Over temperature

Fanless design with -10 to +40

Fully enclosed plastic case

LED indicator for power on.

Safer plastic insulation shell design

Product spec



Specification



O/P Voltage

O/P Current

Ripple & Noise(Max.)

Voltage Accuracy

Line Regulation

Load Regulation

O/P Power(max.)

12.0 V

0.1-3.00 A

300 mVp-p

±5%

±1%

±5%

36W

19.0 V

0.1-1.89A

300 mVp-p

±5%

±1%

±5%

36W

24.0 V

0.1-1.50A

300 mVp-p

±5%

±1%

±5%

36W

36.0 V

0.1-1.0A

300 mVp-p

±5%

±1%

±5%

36W

48.0 V

0.1-0.75A

300 mVp-p

±5%

±1%

±5%

36W



Voltage range

90-264Vac

Frequency range

50/60Hz

Power factor

PF>0.9/230Vac  PF>0.9/115Vac at full load

Efficiency

Min.88% All models

AC current

Max. 5.0A

Inrush current

Max.120A

Leakage current

Max.0.75mA/240Vac

Overload

105-200% rated output power

Protection type: Hiccup mode,recovers automatically after fault condition is removed.

Over voltage

 105-150% rated output voltage.

Protection type:  Lock no output@50% load

 Over temperature

Protection type:  Shut down o/p voltage,re-power on to recover.

 Working temp

 -10 to +40

Working humidity

20% to 90% RH non-condensing

Storage temp &humidity

 -20 to +80& 10-95%RH

Temp coefficient

±0.03%/℃  (0-50℃)





All Model List

Rated O/P voltage range (Vdc)

Rated O/P Current range (A)

Max. O/P power (W)

9.0-18.9

0.1-3.00

36

19.0-30.0

0.1-1.89

36

30.1-54.0

0.1-1.19

36



Certificates and approvals

● CB, CE, GS, UL/CUL, FCC, SAA, RCM, CCC, PSE, KC, KCC

Safety standards

  IEC/EN 62368-1, UL/CUL 62368-1,  GB 4943.1,J60950-1(H27),  J62368-1(H30), AS/NZS 60950.1, AS/NZS 60065, K60950-1

EMC standards

  EMI standards EN55032, FCC Part15 Subpart B, ANSI C63.4

  EMS standardsEN55024, EN55035, EN61000-3-2, EN61000-3-3
