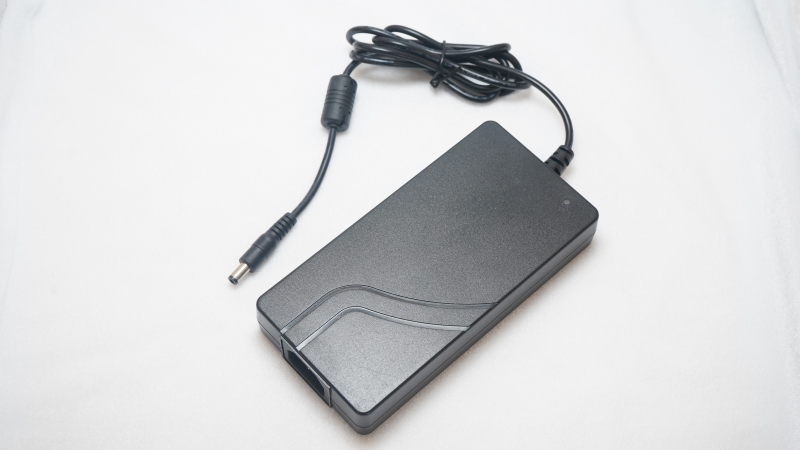

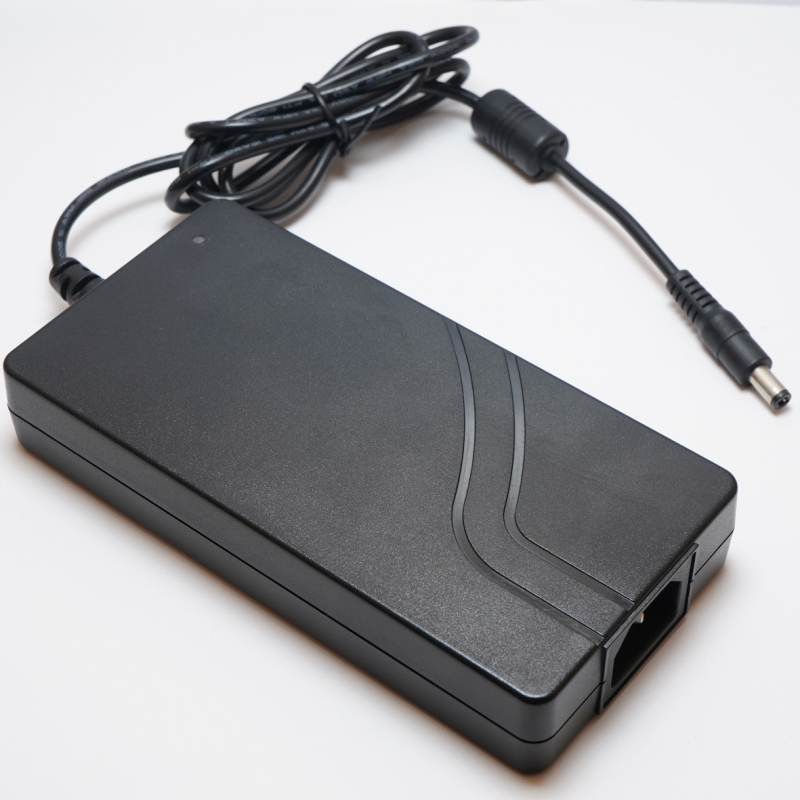

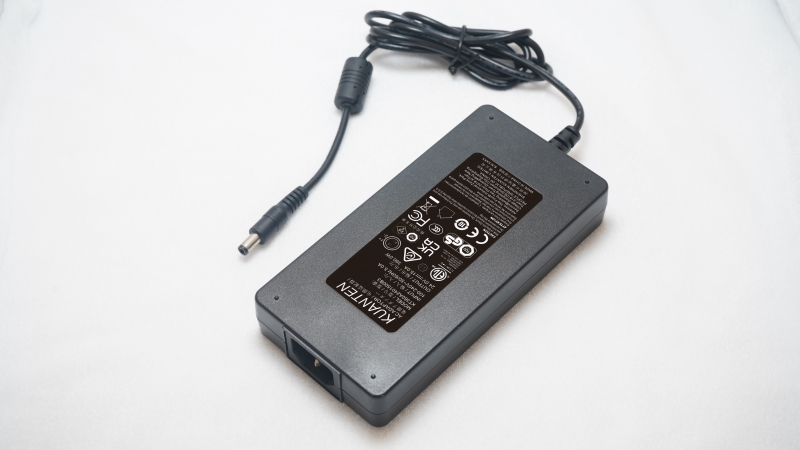

200W SWITCHING AC-DC ADAPTER Desk-Top Type Energy effciency Level Ⅵ

Features



Universal AC input/Full range

Ac inlet:C14/C6/C8

Built-in Active PFC Function

No load power consumption<0.075W

Energy efficiency Level VI

Comply with EISA 2007/DOE,NRC,AU GEMS, EU ERP and COC version 5

Class or Class power

Protections:short circuit /Overload/Over Voltage/Over temperature

Fanless design with -10 to +40

Fully enclosed plastic case

LED indicator for power on.

Safer plastic insulation shell design





Product spec



Specification



O/P Voltage

O/P Current

Ripple & Noise(Max.)

Voltage Accuracy

Line Regulation

Load Regulation

O/P Power(max.)

12.0 V

0.1-15.00 A

300 mVp-p

±5%

±1%

±5%

200W

19.0 V

0.1-10.53A

300 mVp-p

±5%

±1%

±5%

200W

24.0 V

0.1-8.33A

300 mVp-p

±5%

±1%

±5%

200W

36.0 V

0.1-6.11A

300 mVp-p

±5%

±1%

±5%

200W

48.0 V

0.1-4.58A

300 mVp-p

±5%

±1%

±5%

200W



Voltage range

90-264Vac

Frequency range

50/60Hz

Power factor

PF>0.9/230Vac  PF>0.9/115Vac at full load

Efficiency

Min.88% All models

AC current

Max. 5.0A

Inrush current

Max.120A

Leakage current

Max.0.75mA/240Vac





Protection

● Overload       105-200% rated output power

Protection type:  Hiccup mode,recovers automatically after fault condition is removed.

● Over voltage     105-150% rated output voltage.

Protection type:  Lock no output@50% load

● Over temperature

Protection type:  Shut down o/p voltage,re-power on to recover.



Environment

● Working temp: -10 to +40

● Working humidity:20% to 90% RH non-condensing
