Product Highlights
● Global certification compliant
● Universal Input 90 - 264Vac & 50/60 Hz
● CEC & ERP & DoE Level VI compliant
● Very thin appearance, very small size
● Meet CISPR / FCC Class B
● Over Voltage Protection, Over current protection, Over temperature protection
● Short Circuit Protection
● Safer plastic insulation shell design
● Multiple AC inlet can be selected ( C14, C6, C8 )
● Protection Class ( Class I or Class II )
● Degree of Protection ( IP20 )
● Power factor PF＞0.9
● Leakage current max. 0.75mA / 240Vac
● Working temp & humidity -10 to +40℃ , Storage temp & humidity -20 to +80℃ 10-95%

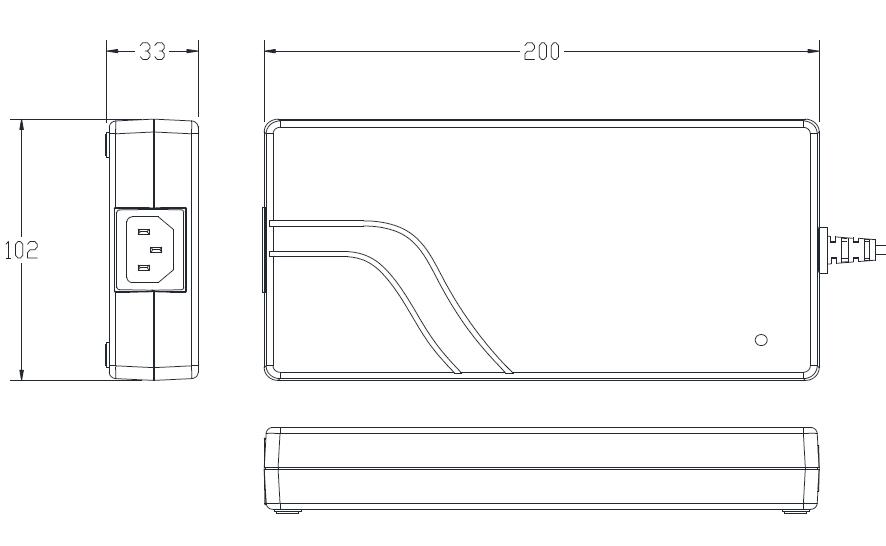

Product size
All Model List
Rated O/P voltage range (Vdc) |
Rated O/P Current range (A) |
Max. O/P power (W) |
5.0-24.0 |
0.01-25.00 |
360.0 |
24.1-36.0 |
0.01-14.93 |
360.0 |
36.1-54.0 |
0.01-9.97 |
360.0 |
Typical Model List
O/P Voltage |
O/P Current |
Ripple & Noise(Max.) |
Voltage Accuracy |
Line Regulation |
Load Regulation |
O/P Power(max.) |
12.0 V |
0.1-25.00 A |
300 mVpp |
±5% |
±1% |
±5% |
300.0W |
19.0 V |
0.1-18.94A |
300 mVpp |
±5% |
±1% |
±5% |
360.0W |
24.0 V |
0.1-15.00A |
300 mVpp |
±5% |
±1% |
±5% |
360.0W |
36.0 V |
0.1-10.00A |
300 mVpp |
±5% |
±1% |
±5% |
360.0W |
48.0 V |
0.1-7.50A |
300 mVpp |
±5% |
±1% |
±5% |
360.0W |
