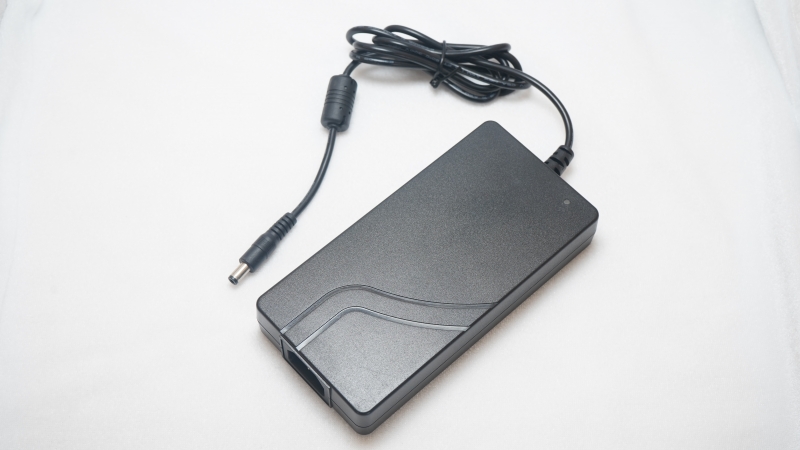

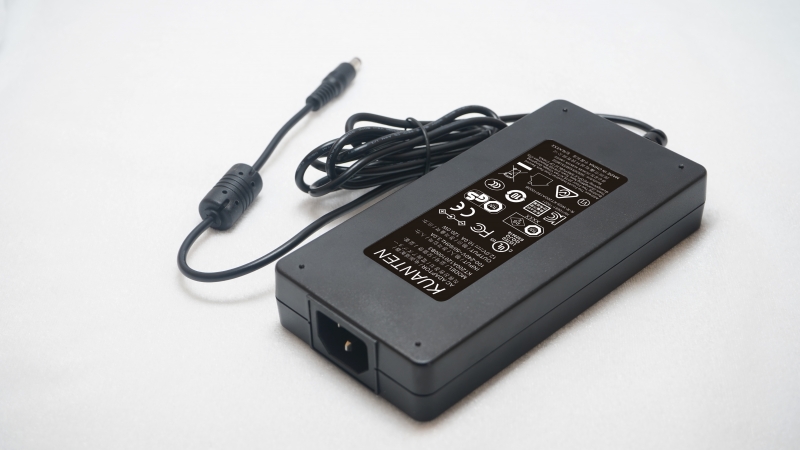

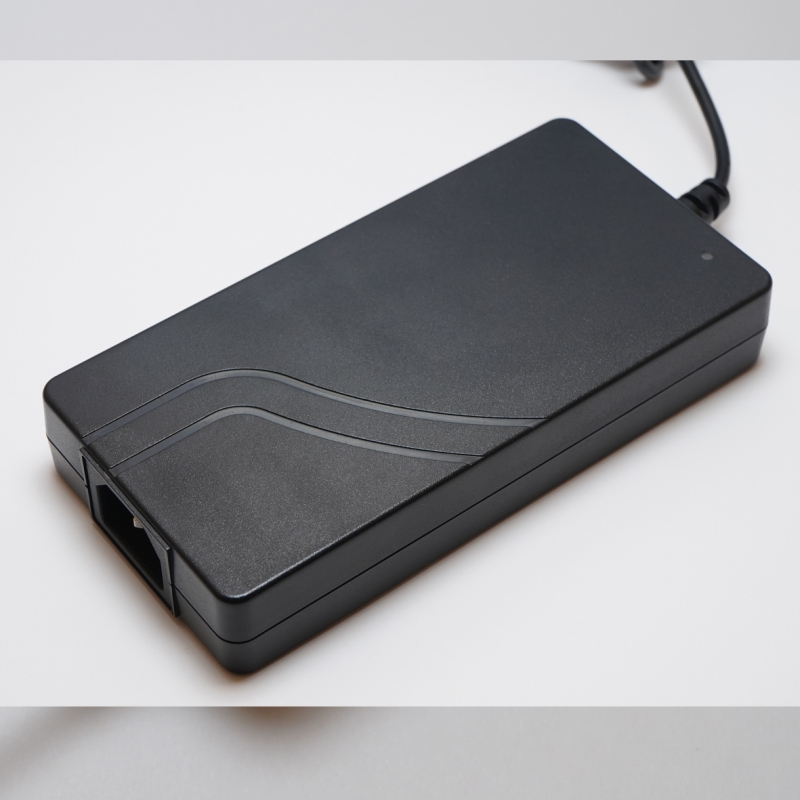

220W SERIES SWITCHING AC-DC ADAPTER

Product Highlights

  Global certification compliant

    Universal Input 90 - 264Vac & 50/60 Hz

    CEC & ERP & DoE Level VI compliant

    Very thin appearance, very small size

    Meet CISPR / FCC Class B

    Over Voltage Protection, Over current protection, Over temperature protection

   Short Circuit Protection

   Safer plastic insulation shell design

   Multiple AC inlet can be selected  ( C14, C6, C8 )

   Protection Class ( Class I or Class II )

   Degree of Protection ( IP20 )

   Power factor PF0.9

   Leakage current max. 0.75mA / 240Vac

   Working temp & humidity  -10 to +40 , Storage temp & humidity -20 to +80 10-95%







All Model List

Rated O/P voltage range (Vdc)

Rated O/P Current range (A)

Max. O/P power (W)

5.0-24.0

0.01-10.00

150.0

24.1-36.0

0.01-6.22

150.0

36.1-54.0

0.01-4.15

150.0



Typical Model List

O/P Voltage

O/P Current

Ripple & Noise(Max.)

Voltage Accuracy

Line Regulation

Load Regulation

O/P Power(max.)

12.0 V

0.1-10.00 A

300 mVpp

±5%

±1%

±5%

120.0W

19.0 V

0.1-7.89A

300 mVpp

±5%

±1%

±5%

150.0W

24.0 V

0.1-6.25A

300 mVpp

±5%

±1%

±5%

150.0W

36.0 V

0.1-4.16 A

300 mVpp

±5%

±1%

±5%

150.0W

48.0 V

0.1-3.12A

300 mVpp

±5%

±1%

±5%

150.0W
