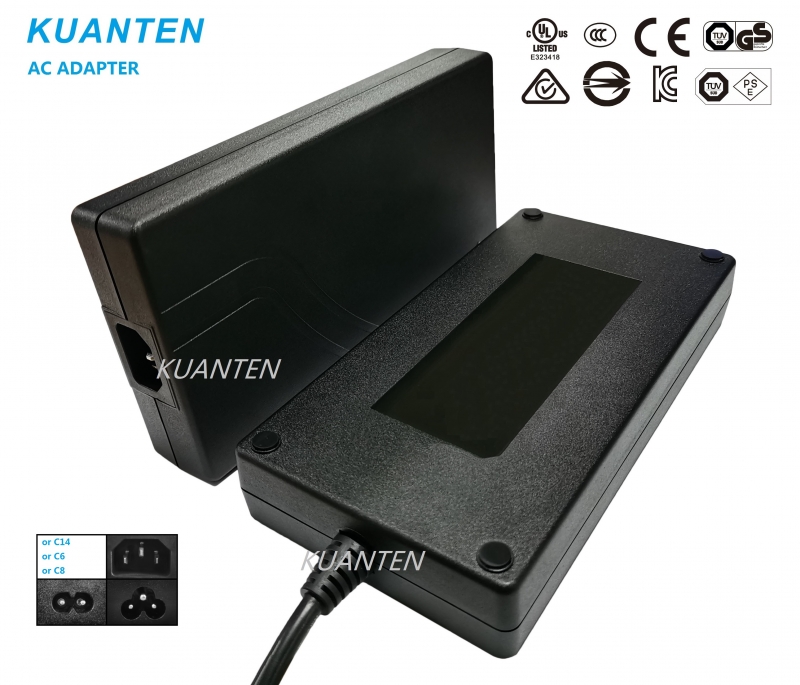

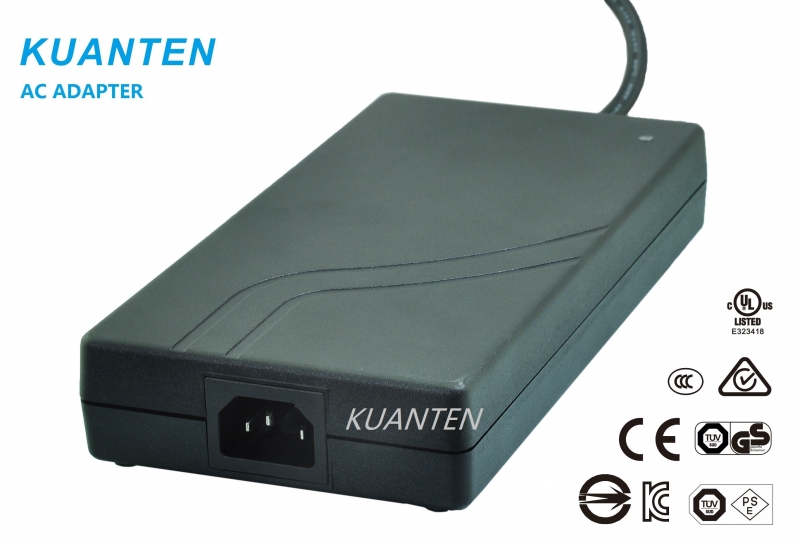

360W Series Power Adapter For EU,US,KR,JP,CH,AS,UK...

Product Highlights

  Global certification compliant

    Universal Input 90 - 264Vac & 50/60 Hz

    CEC & ERP & DoE Level VI compliant

    Very thin appearance, very small size

    Meet CISPR / FCC Class B

    Over Voltage Protection, Over current protection, Over temperature protection

   Short Circuit Protection

   Safer plastic insulation shell design

   Multiple AC inlet can be selected  ( C14, C6, C8 )

   Protection Class ( Class I or Class II )

   Degree of Protection ( IP20 )

   Power factor PF0.9

   Leakage current max. 0.75mA / 240Vac

   Working temp & humidity  -10 to +40 , Storage temp & humidity -20 to +80 10-95%







All Model List

Rated O/P voltage range (Vdc)

Rated O/P Current range (A)

Max. O/P power (W)

5.0-24.0

0.01-25.00

360.0

24.1-36.0

0.01-14.93

360.0

36.1-54.0

0.01-9.97

360.0



Typical Model List

O/P Voltage

O/P Current

Ripple & Noise(Max.)

Voltage Accuracy

Line Regulation

Load Regulation

O/P Power(max.)

12.0 V

0.1-25.00 A

300 mVpp

±5%

±1%

±5%

300.0W

19.0 V

0.1-18.94A

300 mVpp

±5%

±1%

±5%

360.0W

24.0 V

0.1-15.00A

300 mVpp

±5%

±1%

±5%

360.0W

36.0 V

0.1-10.00A

300 mVpp

±5%

±1%

±5%

360.0W

48.0 V

0.1-7.50A

300 mVpp

±5%

±1%

±5%

360.0W

Certificates and approvals

● CB, CE, GS, UL/CUL, FCC, SAA, RCM, CCC, PSE, KC, KCC

Safety standards

   For I.T and A.V equipment

  IEC/EN 62368-1, UL/CUL 62368-1,  GB 4943.1,J60950-1(H27),  J62368-1(H30), AS/NZS 60950.1, AS/NZS 60065, K60950-1

EMC standards

  For I.T &  A.V equipment

  EMI standards EN55032, FCC Part15 Subpart B, ANSI C63.4

  EMS standardsEN55024, EN55035, EN61000-3-2, EN61000-3-3

Download  http://www.kuanten.com/up/rong/photo/202006/20200624075559.pdf
