Product Highlights
● Global
certification compliant
● Universal Input 90 - 264Vac
& 50/60 Hz
● CEC & ERP & DoE Level
VI compliant
● Very thin appearance, very
small size
● Meet CISPR / FCC Class B
● Over Voltage Protection, Over
current protection, Over temperature protection
● Short Circuit Protection
● Safer plastic insulation shell design

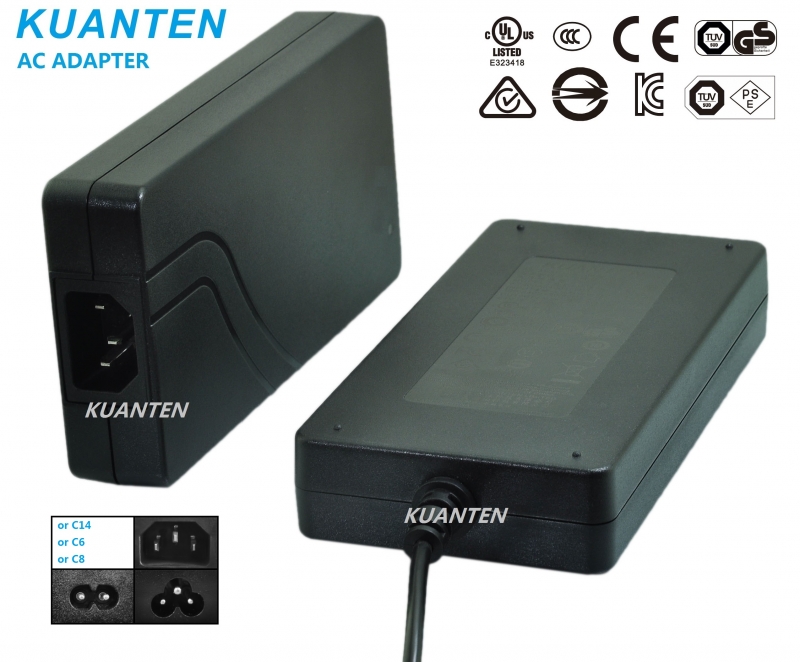

● Multiple AC inlet can be selected ( C14, C6, C8 )
● Protection Class ( Class I or Class II )
● Degree of Protection ( IP20 )
● Power factor PF＞0.9
● Leakage current max. 0.75mA / 240Vac
● Working temp & humidity -10 to +40℃ , Storage temp & humidity -20 to +80℃ 10-95%
All Model List
|
Rated O/P voltage range (Vdc) |
Rated O/P Current range (A) |
Max. O/P power (W) |
|
5.0-24.0 |
0.01-10.00 |
150.0 |
|
24.1-36.0 |
0.01-6.22 |
150.0 |
|
36.1-54.0 |
0.01-4.15 |
150.0 |
Typical Model List
|
O/P Voltage |
O/P Current |
Ripple & Noise(Max.) |
Voltage Accuracy |
Line Regulation |
Load Regulation |
O/P Power(max.) |
|
12.0 V |
0.1-10.00 A |
300 mVpp |
±5% |
±1% |
±5% |
120.0W |
|
19.0 V |
0.1-7.89A |
300 mVpp |
±5% |
±1% |
±5% |
150.0W |
|
24.0 V |
0.1-6.25A |
300 mVpp |
±5% |
±1% |
±5% |
150.0W |
|
36.0 V |
0.1-4.16 A |
300 mVpp |
±5% |
±1% |
±5% |
150.0W |
|
48.0 V |
0.1-3.12A |
300 mVpp |
±5% |
±1% |
±5% |
150.0W |
Certificates and
approvals
● CB, CE, GS, UL/CUL,
FCC, SAA, RCM, CCC, PSE, KC, KCC
Safety standards
● For I.T and A.V equipment
● IEC/EN 62368-1, UL/CUL 62368-1, GB 4943.1,J60950-1(H27), J62368-1(H30), AS/NZS 60950.1, AS/NZS 60065, K60950-1
EMC standards
● For I.T & A.V equipment
● EMI standards： EN55032, FCC Part15 Subpart B, ANSI
C63.4
● EMS standards：EN55024, EN55035, EN61000-3-2, EN61000-3-3
Download http://www.kuanten.com/up/rong/photo/202006/20200624074324.pdf
