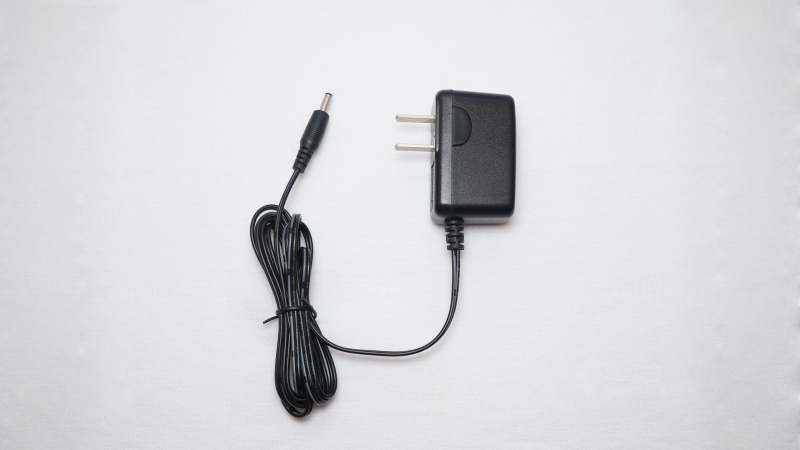

5W Switching AC-DC Adapter China CCC Plug Type

Typical Model List

OUTPUT VOLTAGE

OUTPUT CURRENT

RIPPLE & NOISE (NOTE 2)

VOLTAGE ACCURACY (NOTE 1)

LINE REGULATION (NOTE 3)

LOAD REGULATION (NOTE 4)

MAX OUTPUT POWER

3.6-5.0V

1200mA

250mV

±5%

±2%

±5%

6.0W

5.1-6.0V

1000mA

250mV

±5%

±2%

±5%

6.0W

7.0-12V

660mA

250mV

±5%

±2%

±5%

6.0W

Specification

INPUT SPECIFICATIONS:

Voltage ...………........…..................................... 90~264Vac

Frequency ………………………………………….…....... 50 to 60Hz

Input Current ……………...................................... 0.2A max.

Inrush Current ….. Cold Start @25℃ 50A max. @240Vac

Leakage Current ………………………………….…… 0.25mA max.

OUTPUT SPECIFICATIONS:

Hold-up Time ………………………..……… 10ms typ. @115Vac

Short Circuit Protection….… Continuous(Auto Recovery)

Over Voltage Protection..........................................… Yes

Temperature Coefficient................................ ±0.05%/℃

GENERAL SPECIFICATIONS:

Hi-pot ……………………..……..… Input to output = 3.000VAC

Operating Temperature ..................................... 0 ~ 40℃

Storage Temperature...................................... -20 ~ 80

Humidity……………….……......85% RH max. Non condensing Cooling………………………………………………. Natural Convection

Switching Frequency …………………….……….. 46-64KHz Typical

MTBF ….MIL-HDBK-217F, GB, at 25℃/115VAC….50Khrs min.   Altitude ………………………………………………………………… 5000m

SAFETY AND EMC:

Emission and lmmunity …..…… EN55022 Class B, FCC Part 15 Class B EN61000-6-3,EN61000-3-2,EN61000-3-3, EN55024

Safety ………………………….……… IEC60950, EN60950, UL60950, IEC60065, EN60065, IEC61558, EN61558

NOTE:

1. Voltage accuracy at 60% full load.

2. Add a 0.1uF ceramic capacitor and a 10uF E.L. capacitor to output for Ripple & Noise measurement @20MHz BW.

3. Line regulation is measured from 100V to 240Vac full load.

4. Load regulation is measured from 60% to 100% full load and from 60% to 20% full load (60% +/- 40% full load

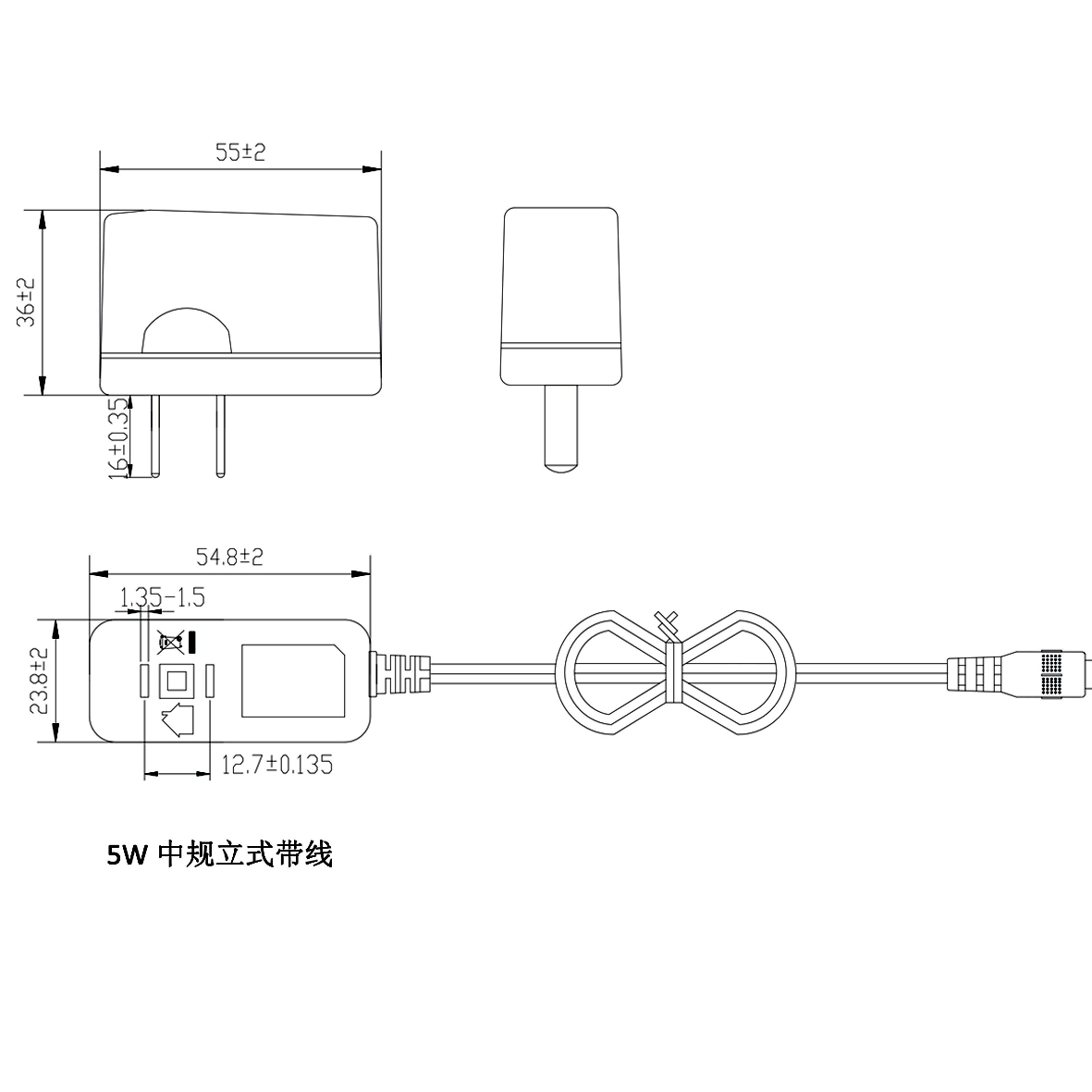

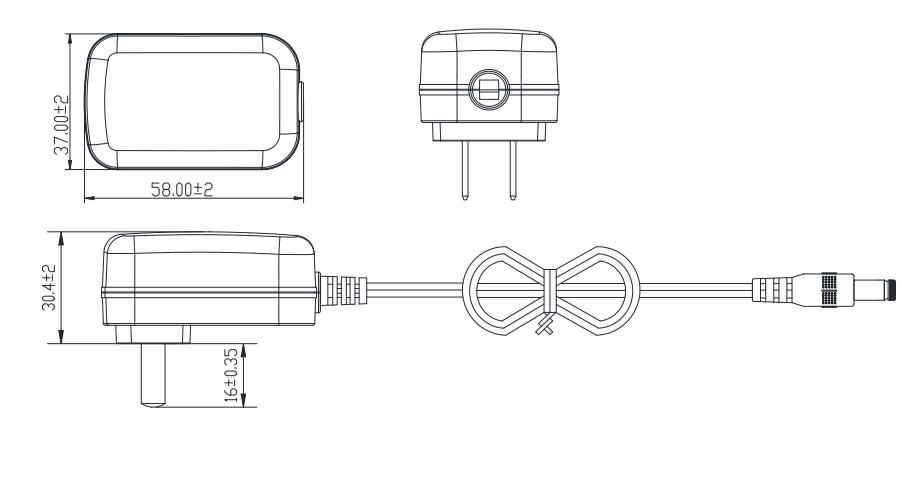

Mechanical Specification
